• PD2-14
    Electric Scroll Compressor
    Features:
    1, Low power consumption to achieve a large cooling capacity, high energy efficiency ratio, stable cooling capacity.
    2. Integrated design, simple structure, small volume, light weight and high volume efficiency.
    3. The compressor is directly driven by the power supply, with continuous and stable suction and exhaust, small vibration and low noise.
    4, Compressor parts, simple operation, reliable operation, high degree of automation, easy to install, low failure rate, simple maintenance.

Range of effect:

Posung Electric Compressor - R134A/R1234yf refrigerant series products are suitable for Electric Vehicles , Hybrid Electric Vehicles , Trucks , Construction Vehicles , High-speed Trains , Electric Yachts , Electric Air-conditioning Systems , Parking Cooler , etc.
Posung Electric Compressor - R404A refrigerant series products are suitable for  Industrail / Commercial Cryogenic Refrigerantion , Transportation Refrigerantion Equipment(Refrigeranting Vehicles,etc),Refrigerantion And Condensing units , etc.

Main technical parameters
ModelPD2-14
Comperssor TypeElectric Scroll Compressor

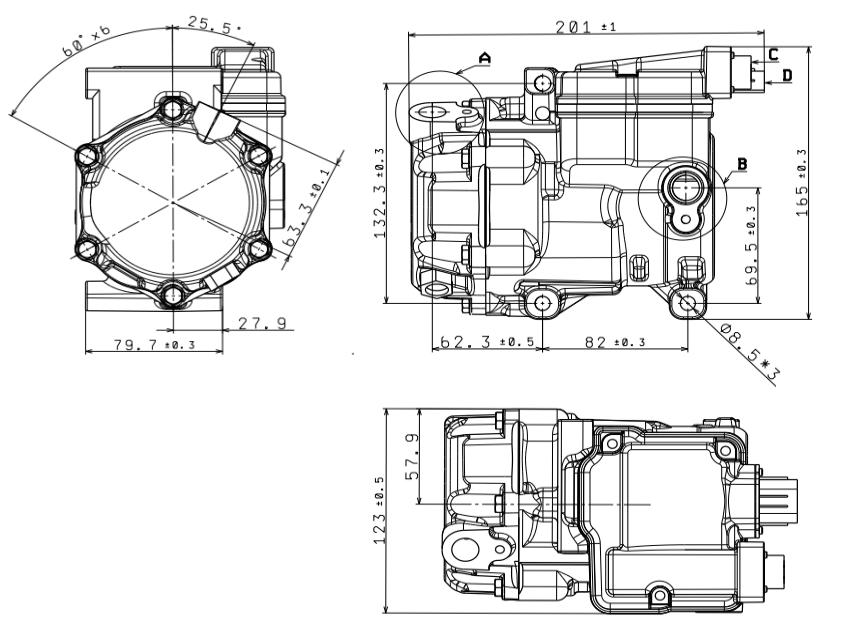

Dimension201*123*165mm
VoltageDC 312V
Speed range2000-6000rpm
Displacement14CC
Max. Refrigerating capacity2310W
RefrigerantR134a / R404a / R1234YF
OilEMKARATE RL 68H/ EMKARATE RL 32H
Net Mass4.3KG

Amdient temperature 35℃       Liquid temp.entering expansion valve 47 ℃

Suction temperature 17 ℃       Condensation temperature 55℃,Evaporation 7℃
